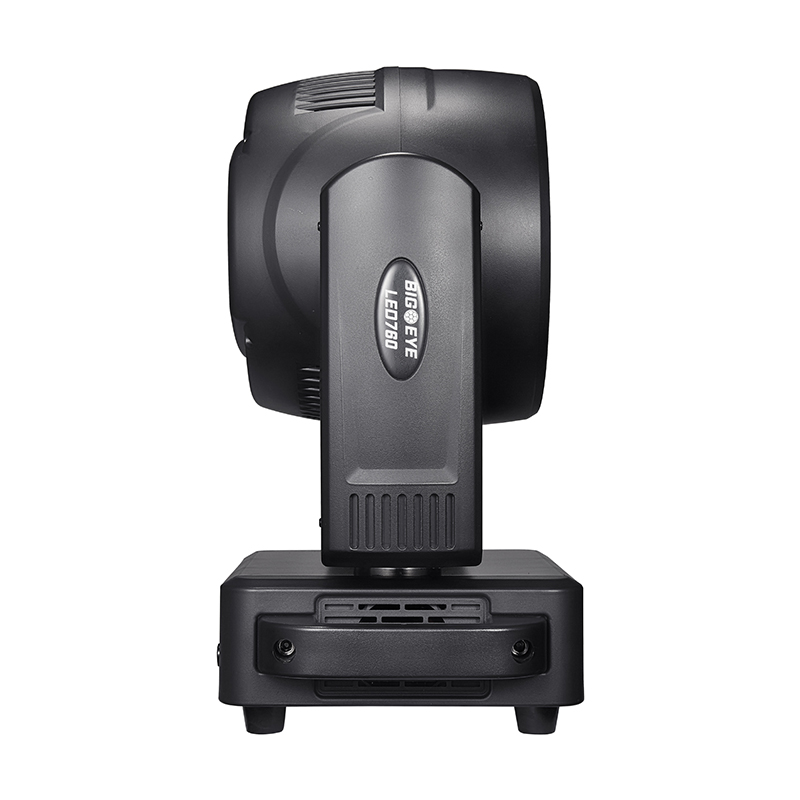

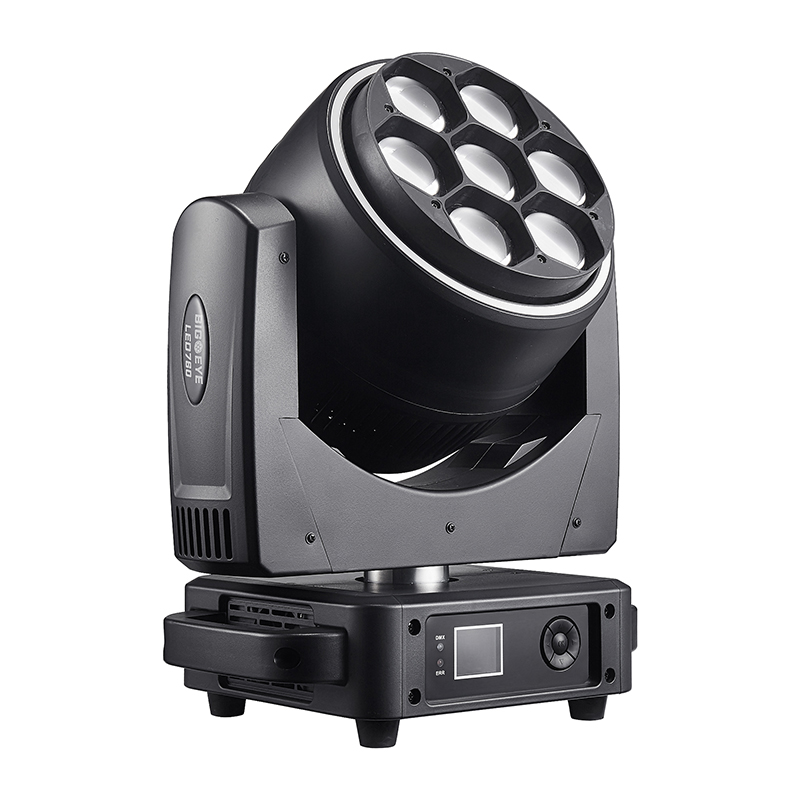

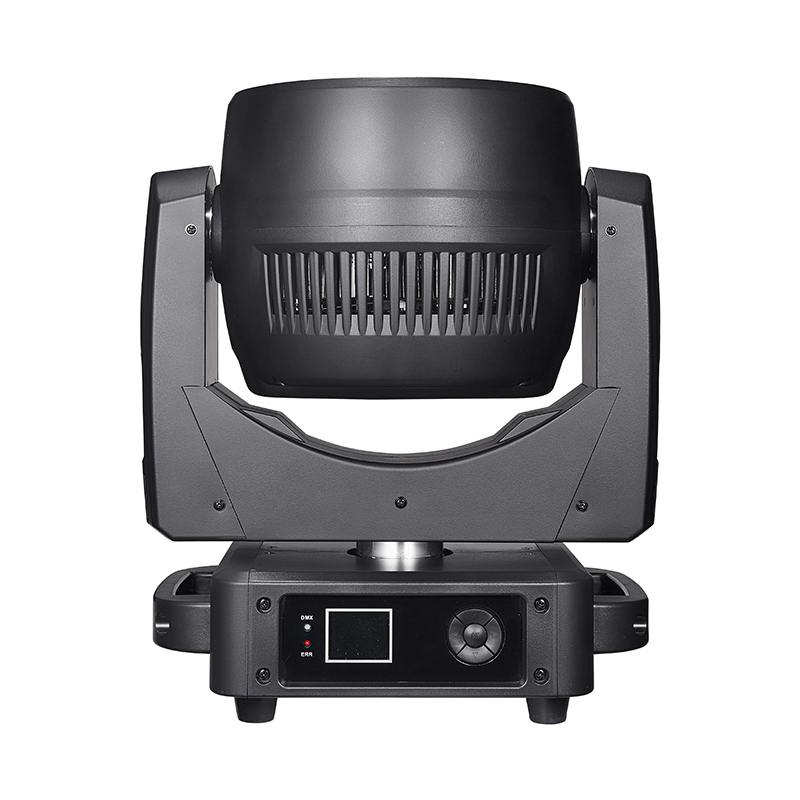

YQ-EYE760
-
Rated voltage: AC100V - 240V, 50/60Hz
Input power: 500W
Light source specifications: 7 60W RGBW LED6065
Auxiliary light source: 67 0.5W LED beads
Verification life: 30000 hours
Colors: red, green, blue, white and many other colors
Focus: 4°-60° DMX linear focus
Color Temperature Control: Built-in CTO DMX Linear Dimming
Electronic strobe, 0.3 ~ 25 times per second, with the option of synchronous or asynchronous random strobe
Dimming: 0 - 100% linearly adjusted electronic dimming, gamma curve dimming frequency 1.2K - 25K adjustable, macro command dimming, linear, stable, smooth, flicker-free. It adopts a stable constant current drive and power supply, suitable for video shooting
Rotation angle: The XY axis is driven by a high-speed silent 60 three-phase motor, with a high-precision imported Hall positioning device, which makes the operation positioning more accurate. In the event of a misoperation, it can automatically return to its original position. Adjustable horizontal and vertical speeds. y-axis rotation function and reversal function
540° horizontally (16-bit precision scanning), 270° vertical (16-bit precision scanning)
Control mode: 30 (simplified), 30/42/58 (standard), 3-channel control mode, standard DMX512 protocol, RDM protocol
Control interface: DMX512 interface (3 cores/optional 5 cores), power cord hand in hand socket
Sleep function: Adopts advanced technology to achieve remote sleep function. When the light is disconnected from the signal, it automatically enters a sleep state, making the light more stable and safer
Display function: 1.77-inch LCD screen, bilingual menu in Chinese and English, sensor fault display, temperature display
Heat dissipation system: Adopt high-conductivity lightweight aluminum heat sink. Fan intelligent monitoring technology, automatically adjust the fan speed according to the temperature of the lamp. It is equipped with an intelligent overheat protection system and an intelligent temperature and noise balancing module
Degree of protection: IP20, optional rain cover, protection level up to IP44
Lamp packaging: waterproof and shockproof aviation box or carton
Net weight: 17KGnGross weight: 19.5KG Product size: 34*23*41CM Packing size: 47*34*52CM (one per pack)
Effect mode: (Vortex, Kaleidoscope)
Variable direction stepless rotation of the front mirror panel, seamless splicing of the mirror plate, aspherical lens structure, single point control of light beads, control of light bar effects: strobe and horse racing effect, built-in program
Peculiarity:
1. Automatic screen rotation function: The system can automatically rotate the screen according to the direction of gravity, eliminating the need for manual screen rotation! The auto-rotate function can also be turned off
2. The integrated motherboard design solves the problems of e-liquid, colored paper, etc. It can control the lamp beads of a single segment and offers a variety of effects such as horse racing effects and built-in features. This product has the RDM remote console dip upgrade function
