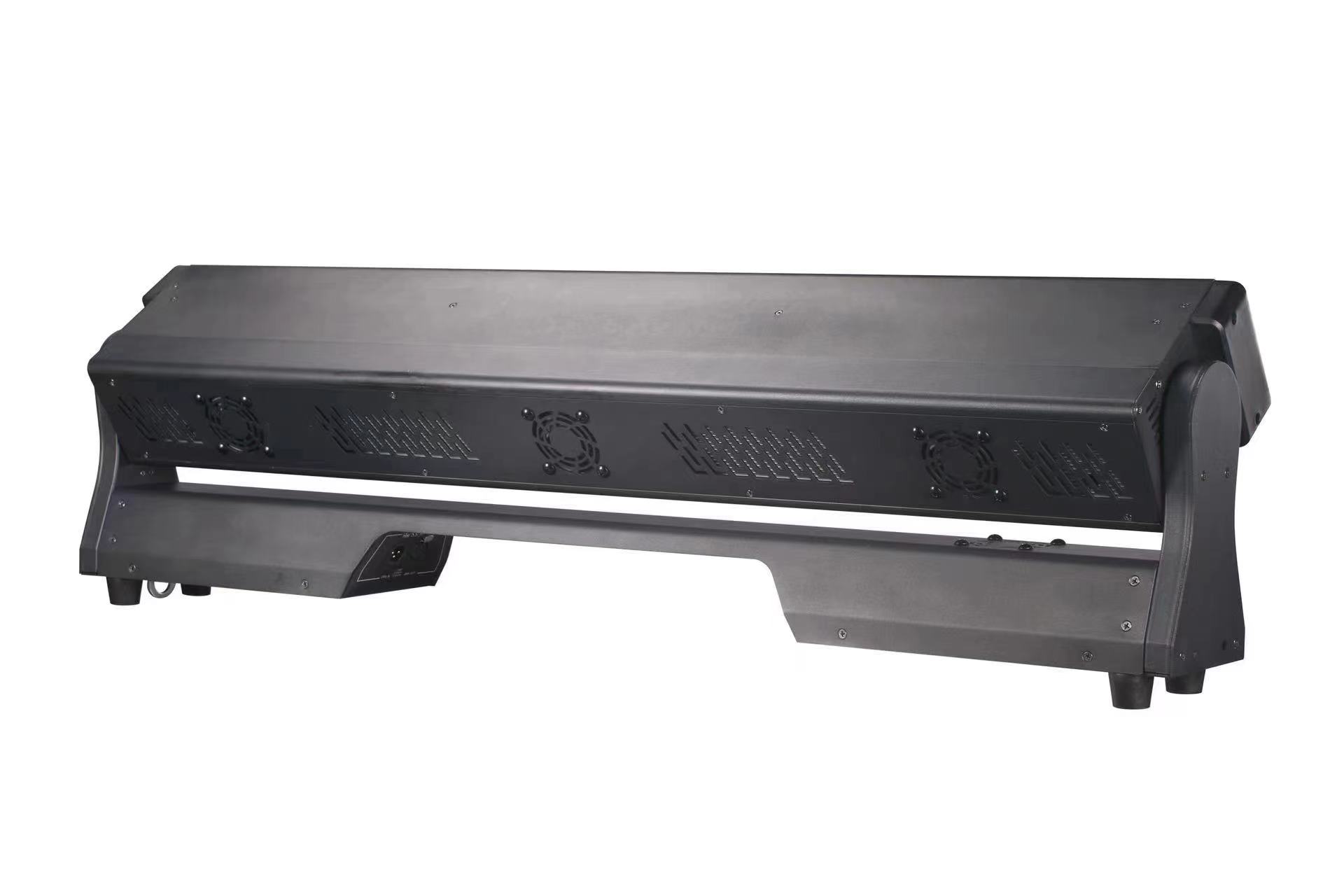

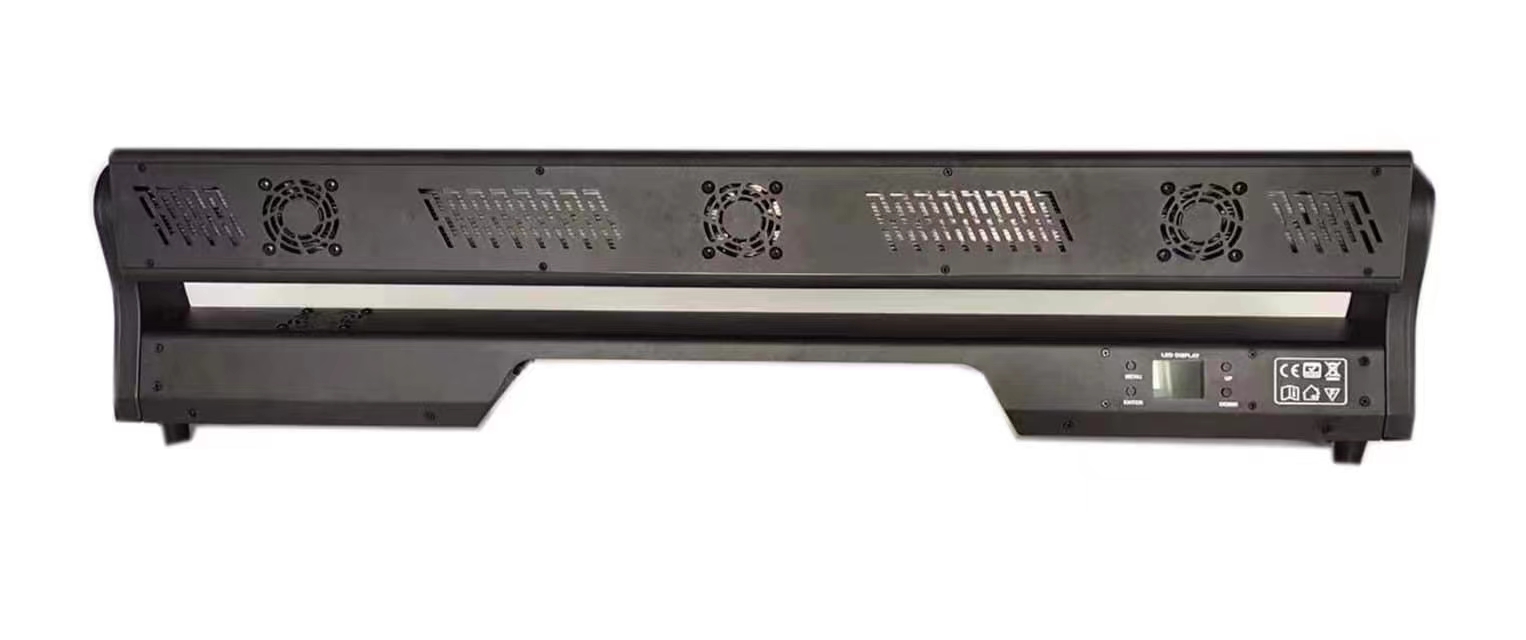

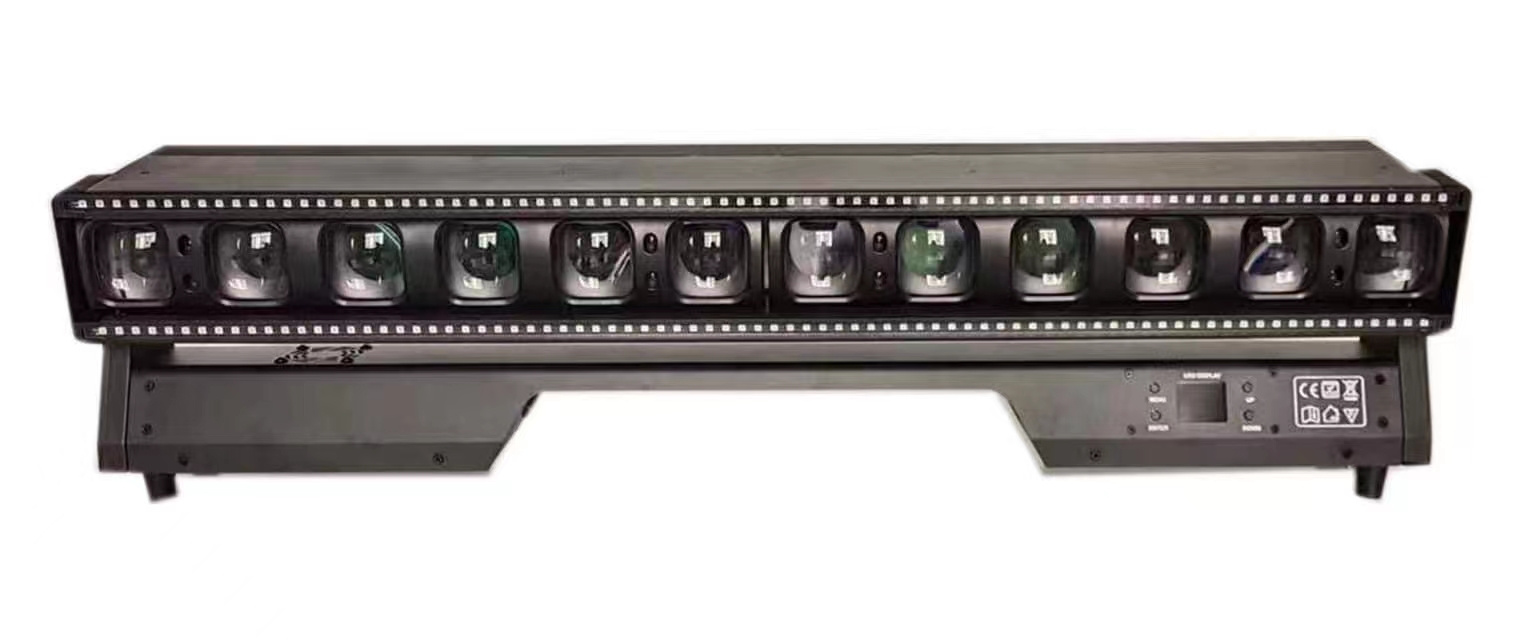

YQ-ZN1240A
-
Power supply: AC90-AC240 50-60HZ
Maximum power: 600W
Number of main light beads: 12 40w LED5060
Quantity of auxiliary light beads: RGB: 144X0.5W
Main light color: red green blue white
Display screen: Chinese and English menus, buttons 1.77 color screen
Focusing system: segmented independent single point single control
Beam angle: 2.8-31 degrees
Spot angle: 5 ° -45 °
Strobe: 1-25 times/second
Dimming: Electronic dimming with 0-100% linear adjustment, with gamma curve dimming frequency adjustable from 1.2K to 25K, macro command dimming with linear stability and smoothness without flicker, using stable constant current drive and power supply, suitable for video recording and shooting
Vertical angle: 220 ° in the vertical direction (16 bit precision scanning). The Y-axis is driven by a high-speed silent 60 three-phase motor, which makes the operation faster and smoother. When there is a misoperation, it can automatically return to its original position, and the vertical speed is adjustable; Y-axis rotation function and reverse function; Using optical electromagnetic coding for high-precision positioning
Control signal: DMX512, master-slave, voice controlled or self-propelled program
Control channels: CH27, CH62, 2 DMX channel modes
Power connection method: Power input/output, maximum connection quantity @ 2 units 230V, 1 unit 120V
Signal connection method: DMX512 input/output, maximum connection quantity of 30 3-core units
Support network protocol Artnet
Splicing method: Can be quickly spliced horizontally
Working temperature: -10 ° C~45 ° C
Protection level: IP20
Product size: 107 * 36 * 19CM
Net weight of product: 15KG
Product gross weight: 16KG
