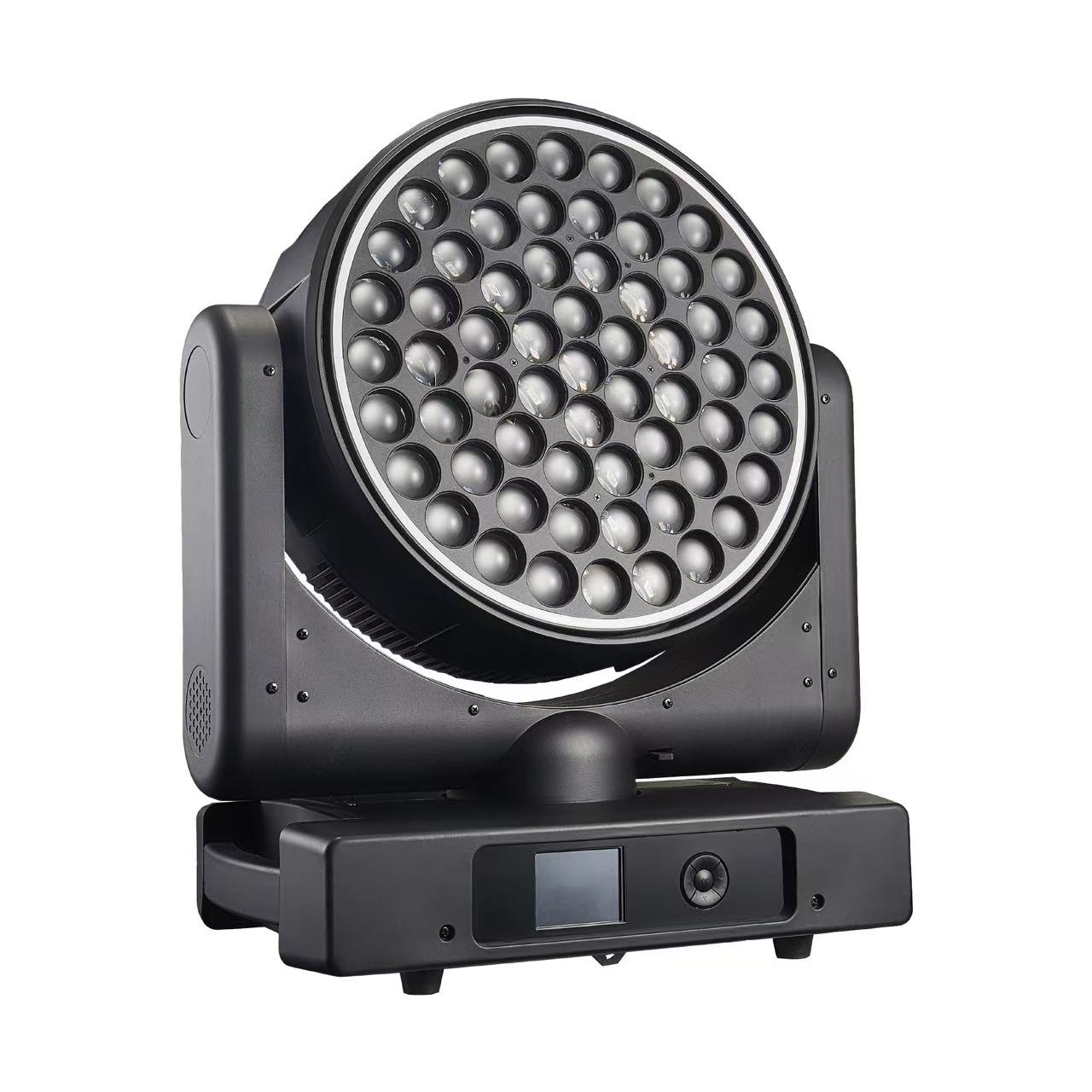

YQ-R6130
-
Rated voltage: AC100V~240V 50/60Hz
Input power: 2000W
Main light source specification: 61 30W RGBW LEDs 6065
Internal auxiliary LED: 366 0.2W LEDs 3535RGB
External auxiliary LED: 93 0.2W LEDs 5050RGB
Rated lifespan: 30000 hours
Colors: Red, Green, Blue, White, Multiple Colors
Focusing: 5 ° -48 ° DMX linear focusing
Color temperature control: built-in CTO DMX linear dimming
Electronic strobe, 0.3-25 times/second, can choose synchronous or asynchronous random strobe
Dimming: Electronic dimming with 0-100% linear adjustment, with gamma curve dimming frequency adjustable from 1.2K to 25K, macro command dimming with linear stability and smoothness without flicker, using stable constant current drive and power supply, suitable for video recording and shooting
Rotation angle: The XY axis is driven by a high-speed silent 60 thick three-phase motor, coupled with a high-precision imported magnetic coding positioning device, making the operation positioning more accurate. When there is a misoperation, it can automatically return to its original position, and the horizontal and vertical speeds can be adjusted; XY axis rotation function and reverse function
Horizontal direction 540 ° (16 bit precision scan), vertical direction 270 ° (16 bit precision scan)
Control mode: 21 (simplified) 21CH/49CH/204CH/232CH/265CH (standard) 5 channel control modes, standard DMX512 protocol, RDM protocol
Control interface: DMX512 interface (3-core/optional 5-core), power cord handle socket
Sleep function: Advanced technology is used to achieve remote sleep function. When the light fixture disconnects the signal, it automatically enters sleep mode, making the light fixture more stable and safe
Display function: 2.8-inch touch screen display, bilingual menu in Chinese and English, sensor fault display, temperature display
Heat dissipation system: using high conductivity copper tube heat sink, fan intelligent monitoring technology automatically adjusts fan speed according to lamp temperature, built-in overheat protection intelligent system/intelligent temperature and noise balance module
Support network protocol Artnet and upgrade interface with USB
Working temperature: -10 ° C~45 ° C
Lamp packaging: waterproof and shockproof aviation box or cardboard box
Net weight: 22.45 kg
Gross weight: 25.5kg
Carton size: 59.5 * 56.5 * 50cm (one pack, one)
