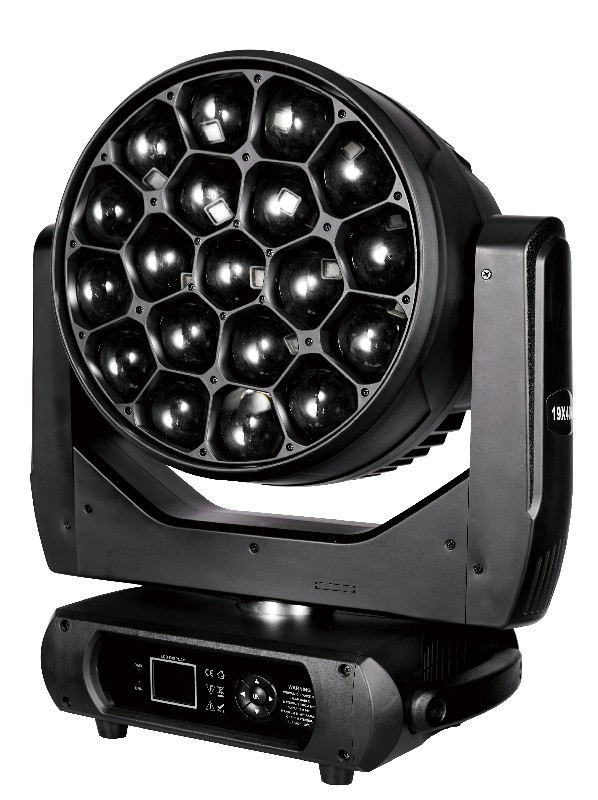

YQ-MOD1940A
19 OSRAM 40W large peak eye LED beads
Input power: 1000W
Light source specification: 19 40W four in one LED Osram light sources
Rated lifespan: 50000 hours
Colors: Red, Green, Blue, White, Multiple Colors
Focusing: 2 ° -60 ° DMX linear focusing with automatic focusing function
Color temperature control: built-in CTO DMX linear dimming
Electronic strobe, 0.3-25 times/second, can choose synchronous or asynchronous random strobe
Dimming: Electronic dimming with 0-100% linear adjustment, with gamma curve dimming frequency adjustable from 1.2K to 25K, macro command dimming with linear stability and smoothness without flicker, using stable constant current drive and power supply, suitable for video recording and shooting
Rotation angle: The XY axis is driven by a high-speed silent 60 three-phase motor, coupled with a high-precision imported Hall positioning device, making the operation positioning more accurate. When there is a misoperation, it can automatically return to its original position, and the horizontal and vertical speeds can be adjusted; XY axis rotation function and reverse function
Horizontal direction 540 ° (16 bit precision scan), vertical direction 270 ° (16 bit precision scan)
Control mode: 22 (simplified) 22CH/22CH+RGB/22CH+RGBW/25CH/25CH/25CH+RGBW/36CH/36CH+RGB/36CH+RGBW (standard) 9 channel control modes, standard DMX512 protocol, RDM protocol

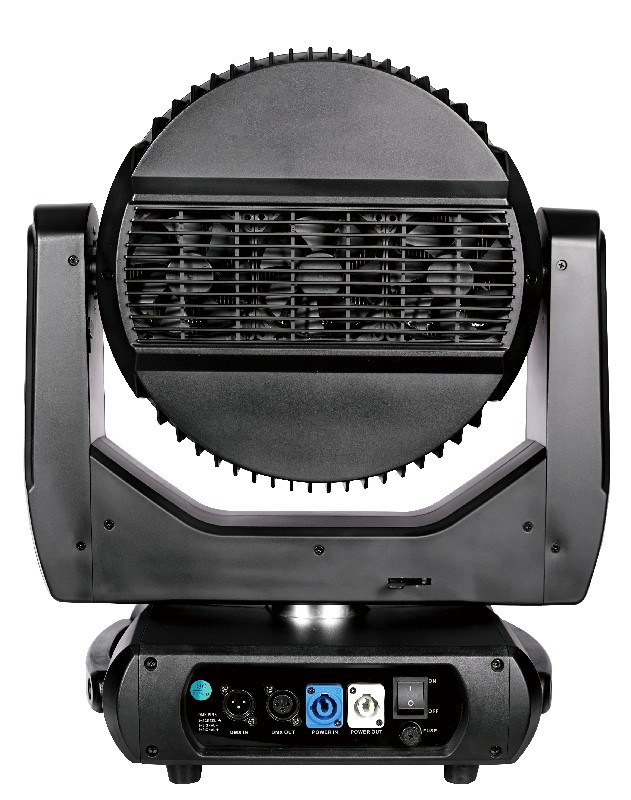

Control interface: DMX512 interface (3-core/optional 5-core), power cord handle socket
Sleep function: Advanced technology is used to achieve remote sleep function. When the light fixture disconnects the signal, it automatically enters sleep mode, making the light fixture more stable and safe
Display function: 1.77-inch LCD screen, bilingual menu in Chinese and English, sensor fault display, temperature display
Heat dissipation system: using high conductivity copper tube heat sink, fan intelligent monitoring technology automatically adjusts fan speed according to lamp temperature, built-in overheat protection intelligent system/intelligent temperature and noise balance module
Protection level: IP20, optional rain cover protection level up to IP44
Lamp packaging: waterproof and shockproof aviation box or cardboard box
Net weight: 20kg
Gross weight: 23 kg
Product size: 36.5 * 46.3 * 46.3CM
Packaging size: 57 * 53 * 42CM
Effect mode: (Vortex, Kaleidoscope)
The front mirror disc can rotate infinitely, seamlessly spliced mirror disc, non spherical lens structure, single point control of light bead, light strip effect: strobe, scrolling effect, with built-in program
characteristic:
1. Screen automatic rotation function, the system can automatically rotate the screen according to the direction of gravity, without the need for manual rotation! You can also turn off the automatic rotation function
2. The integrated motherboard design solves the problems of e-liquid, colored paper, etc. It can independently control the LED beads, race effect, built-in and other rich effects. The product has built-in RDM remote control panel dialing upgrade function
