Rated voltage: AC100V~240V 50/60Hz

Input power: 300W

Light source specification: 7 40W four in one LEDs 5060

Rated lifespan: 30000 hours

Colors: Red, Green, Blue, White, Multiple Colors

Focusing: 4.5 ° -45 ° DMX linear focusing with automatic focusing function

Color temperature control: built-in CTO DMX linear dimming

Electronic strobe, 0.3-25 times/second, can choose synchronous or asynchronous random strobe

Dimming: Electronic dimming with 0-100% linear adjustment, with gamma curve dimming frequency adjustable from 1.2K to 25K, macro command dimming with linear stability and smoothness without flicker, using stable constant current drive and power supply, suitable for video recording and shooting

Rotation angle: The XY axis is driven by a high-speed silent 57 three-phase motor, coupled with a high-precision imported Hall positioning device, making the operation positioning more accurate. When there is a misoperation, it can automatically return to its original position, and the horizontal and vertical speeds can be adjusted; XY axis rotation function and reverse function

Horizontal direction 540 ° (16 bit precision scan), vertical direction 270 ° (16 bit precision scan)

Control mode: 23 (simplified) 35/51 (standard) 4 channel control modes, standard DMX512 protocol, RDM protocol

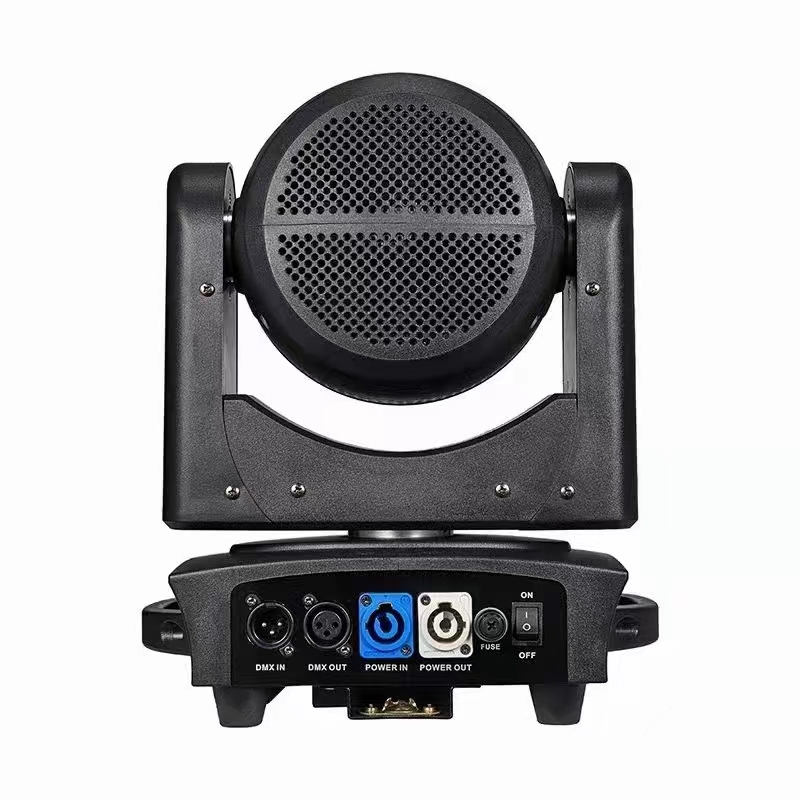

Control interface: DMX512 interface (3-core/optional 5-core), power cord handle socket

Sleep function: Advanced technology is used to achieve remote sleep function. When the light fixture disconnects the signal, it automatically enters sleep mode, making the light fixture more stable and safe

Display function: 1.77-inch LCD screen, bilingual menu in Chinese and English, sensor fault display, temperature display

Cooling system: High conductivity lightweight aluminum radiator is used, and the intelligent monitoring technology of the fan automatically adjusts the fan speed according to the temperature of the lamp. The built-in overheat protection intelligent system/intelligent temperature and noise balance module

Protection level: IP20, optional rain cover protection level up to IP44

Lamp packaging: waterproof and shockproof aviation box or cardboard box

Gross weight: 9.5KG

Net weight: 8 KG

Product size: 34 * 23 * 41CM

Packaging size: 50 * 41 * 30.5CM (one pack, one)

Effect mode: (Vortex, Kaleidoscope)

The front mirror disc can rotate infinitely, seamlessly integrated with a non spherical lens structure. The single point control of the light bead controls the light strip effect, including strobe and scrolling effects, with built-in programs

characteristic:

1. Screen automatic rotation function, the system can automatically rotate the screen according to the direction of gravity, without the need for manual rotation! You can also turn off the automatic rotation function

2. The integrated motherboard design solves the problems of e-liquid, colored paper, etc. It can independently control the LED beads, race effect, built-in and other rich effects. The product has built-in RDM remote control panel dialing upgrade function
