Rated voltage: AC100V~240V 50/60Hz

Input power: 350W

Light source specifications: 7pcs 40W 4-in-1 LED OSRAM light sources

Approved life: 50,000 hours

Color: red, green, blue and white

Focusing: 8°-60°DMX linear focusing, with autofocus function

Color temperature control: Built-in CTO DMX linear dimming

Electronic strobe, 0.3~25 times/second, synchronous and asynchronous random strobe can be selected

Dimming: Electronic dimming 0~100% linear adjustment, with gamma curve dimming frequency 1.2K~25K adjustable, macro dimming linear, stable and smooth without flickering, using stable constant current drive and power supply, suitable for video shooting

Rotation angle: The XY axis is driven by a high-speed silent 60 three-phase motor, with a high-precision imported Hall positioning device, which makes the operation and positioning more accurate, and can be automatically homing when a misstep occurs, and the horizontal and vertical speeds are adjustable; XY axis rotation function and reversal function

540° horizontally (16-bit precision scanning), 270° vertically (16-bit precision scanning)

Control mode: 18 (streamlined) 21/28/49 (standard) 4 channel control modes, standard DMX512 protocol, RDM protocol

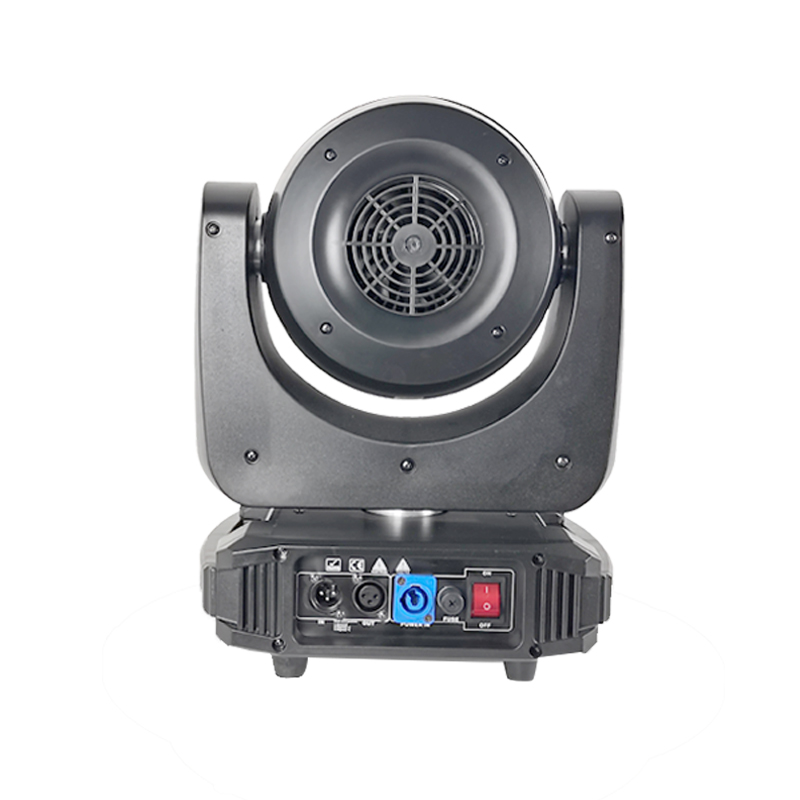

Control interface: DMX512 interface (3 pins/optional 5 pins), power cord hand holding socket

Sleep function: The remote sleep function is realized using advanced technology, and it automatically enters the sleep state when the lamp is disconnected from the signal, making the lamp more stable and safer

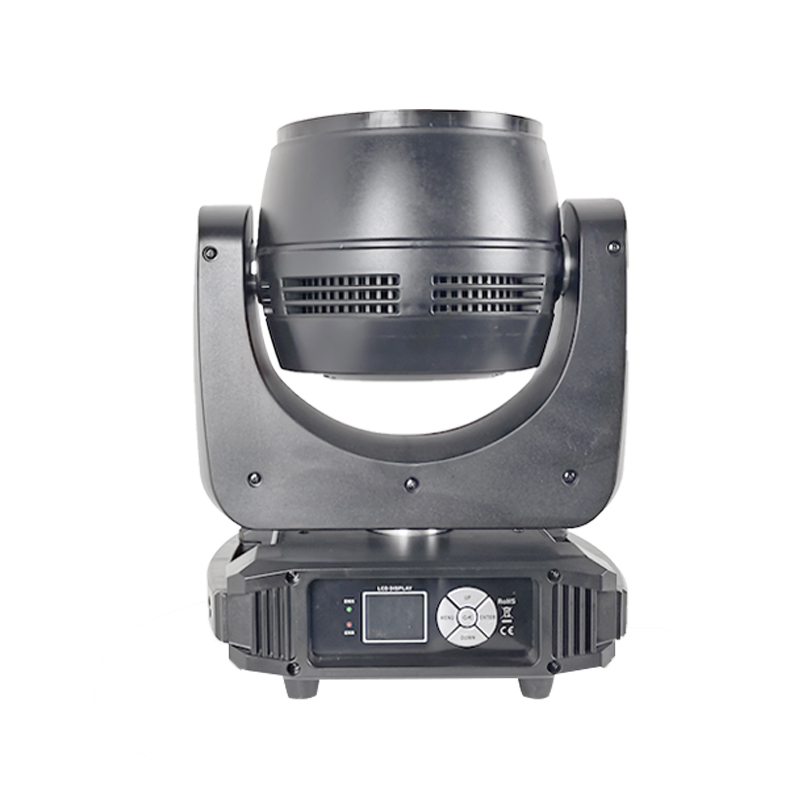

Display function: 1.77-inch LCD screen, bilingual menu in Chinese and English, sensor fault display, temperature display

Heat dissipation system: adopts high-conductivity light aluminum radiator, fan intelligent monitoring technology automatically adjusts the fan speed according to the temperature of the lamp, built-in overheat protection intelligent system/intelligent temperature and noise balance module

Degree of protection: IP20, optional rain cover protection up to IP44

Lamp packaging: waterproof and shockproof aviation box or carton

Net weight: 7KG

Gross weight: 8KG

Product size: 29*21*37CM

Packing size: 47*38*29.5CM (one pack one)

Effect Mode: (Focus/Beam)

Lamp beads single point control control light strip effect: strobe, horse racing effect, with built-in program

Peculiarity:

1. Screen auto-rotation function, the system can automatically rotate the screen according to the direction of gravity, no need to rotate manually! It is also possible to turn off the auto-rotation function

2. The integrated motherboard design solves the problems of e-liquid, colored paper, etc., and can be controlled by separate segments to control the lamp beads, horse racing effect, built-in and other rich effects, and the product has a built-in RDM remote console dip upgrade function
